Nitidus Touch
Say goodbye to annoying stains: our Nitidus Touch allows you to have an extra transparent coating, that go on top of a variety of PVD colors and it makes sure that your surfaces are easy to clean.
Protec Surface Technologies and Arzuffi PVD have joined forces to create a solution that can face the needs of the surface coatings market.
- Nitidus Touch is based on easy to clean technology, which allows you to have an easy to clean surface.
- Applications: ideal for the decorative PVD field, especially for taps and handles.
Advantages
- 3 classic decorative PVD cycles = 1 Nitidus Touch cycle
- Double door to speed up productivity
- Six support frames (same of a PVD machine ones and also customizable)
- Dry vacuum system and three TMP pumps

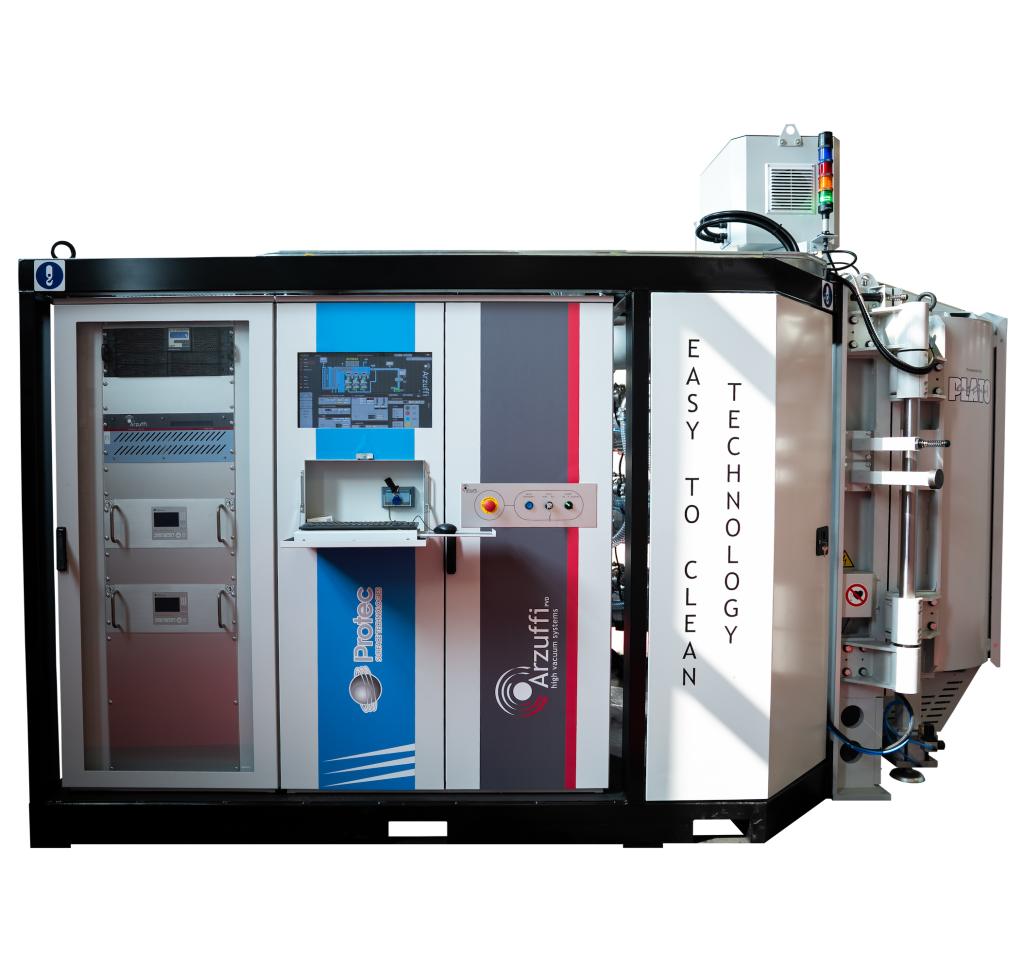

Hardware by Arzuffi PVD
- Available technologies: Thermal Evaporation, Magnetron Sputtering, PECVD, Glow Discharge (pre-cleaning)

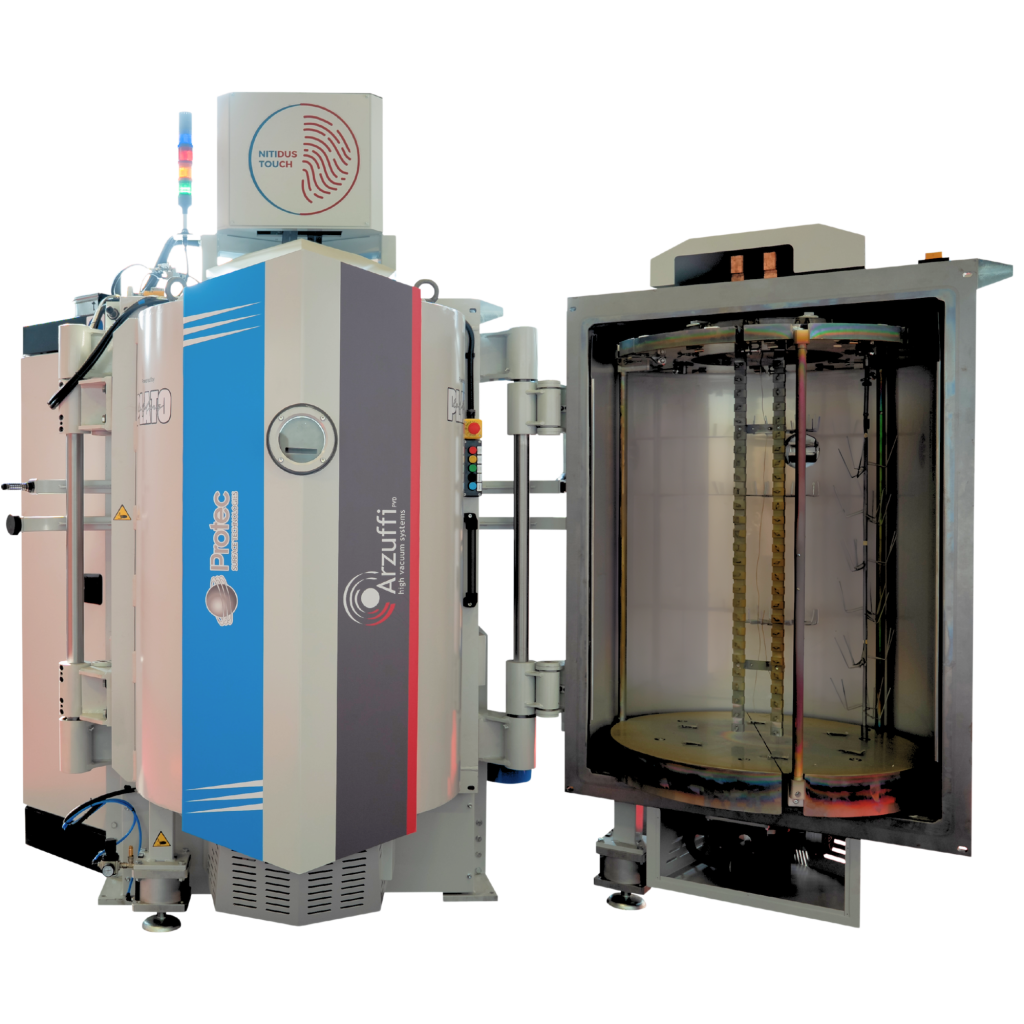

- Chamber Type: high vacuum batch chamber with dual front doors
- Internal chamber dimensions. diameter 1100mm x height 1500mm
- Useful size: consistent with equipment such as the Protec ST
- Deposition positions: 6/12 planetary holders per door or more according to customers’ requests
- Full cycle time: 30 minutes
- Pump system: 3 Edwards turbo pumps, Leybold roots pump, Leybold dry pump
- Control system: PLC Siemens S7-1500 with HMI and remote connection
Process by Protec St
Nitidus Touch coatings ensure high durability of easy-to-clean properties over time.
Touch coated samples:
- Surface energy: values below target specifications
- Aging resistance (salt spray test): stable beyond 72 hours
- Wear and chemical resistance: minimal variation even after 200 cycles
